Hapa 382 Hybrid

A modular UV printing system, combining economic features of Flexo technology and flexibility of UV DOD printing

Grundlegende Informationen

  • TECHNOLOGIE: Hybrid Printing
  • INDUSTRIE: Pharma & Healthcare
  • SEGMENT: OTC, Other Pharma & Healthcare

Beschreibung

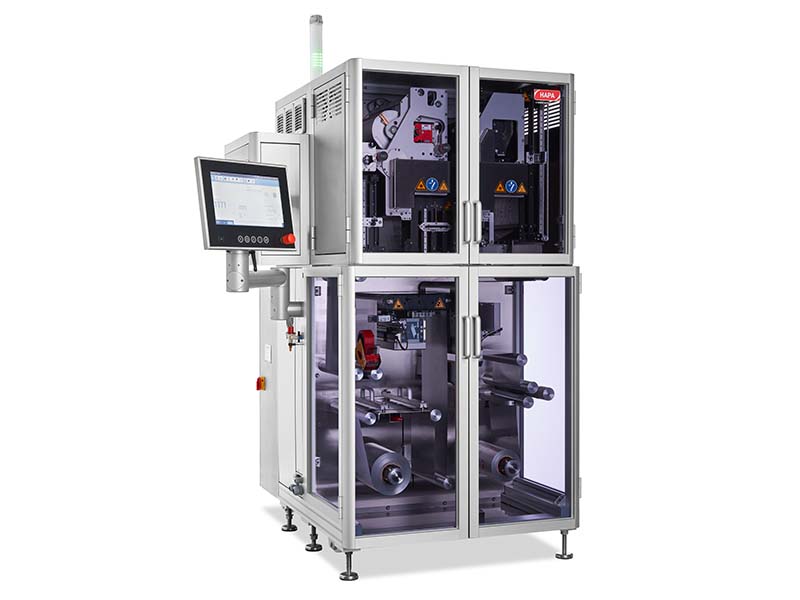

​The Hapa 382 Hybrid is a modular UV printing system, combining the economic features of Flexo
technology and the flexibility of Digital UV DOD (drop on demand) printing. The system can be supplied in a number of configurations and print on a variety of roll fed substrates including aluminum foil, paper, PVC and Tyvek. These solvent-free printing technologies use UV curing inks, making the Hapa Hybrid the perfect solution for use within a pharmaceutical environment.

Weiterführende Informationen

Technische Daten
Maschinentiefe (mm)1387
Maschinenhöhe (mm)2281
Maschinenlänge (mm)1020
Maschinengewicht (kg)1075
Sonstige Technische Merkmale
Technologische AnwendungBlisters, Deep draw blisters, Trays, Pouches
SubstrateAluminum foil, Paper-backed foil, Paper, PVC, Tyvek
Technical Data
Max. Vortriebslänge (mm)350
Technische Daten
Max. Druckbreite (mm)298
Max. Bahnbreite (mm)310
Min. Vortriebslänge (mm)90
Min. Bahnbreite (mm)70
Auflösung (dpi)360
Max printing speed (m/min)35
Leistungsversprechen
LeistungsversprechenFlexibilität
Dokumente
Technical_Datasheet_H382-HYBRID_R_EN/DEHERUNTERLADEN
Technical_Datasheet_H382-HYBRID_S_EN/DEHERUNTERLADEN
Technical_Datasheet_H382-HYBRID_R-V_EN/DEHERUNTERLADEN
Technical_Datasheet_H382-HYBRID_T_EN/DEHERUNTERLADEN
Brochure_H-382-Hybrid_ENHERUNTERLADEN
