BFS-JET

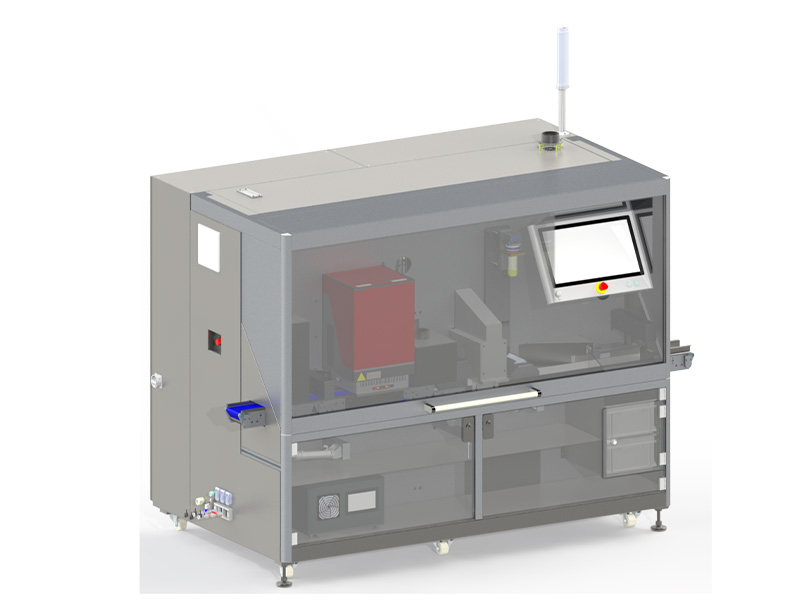

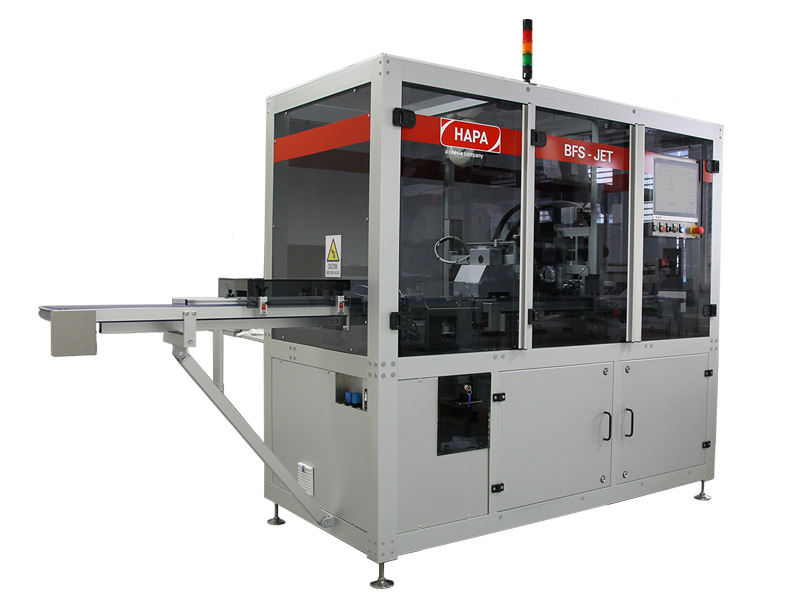

The Hapa BFS-JET, late-stage customization printing system is designed to print on blow fill seal, unit dose vials

Basic Info

  • TECHNOLOGY: Digital Printing
  • INDUSTRY: Pharma & Healthcare
  • SEGMENT: OTC, Other Pharma & Healthcare

Description

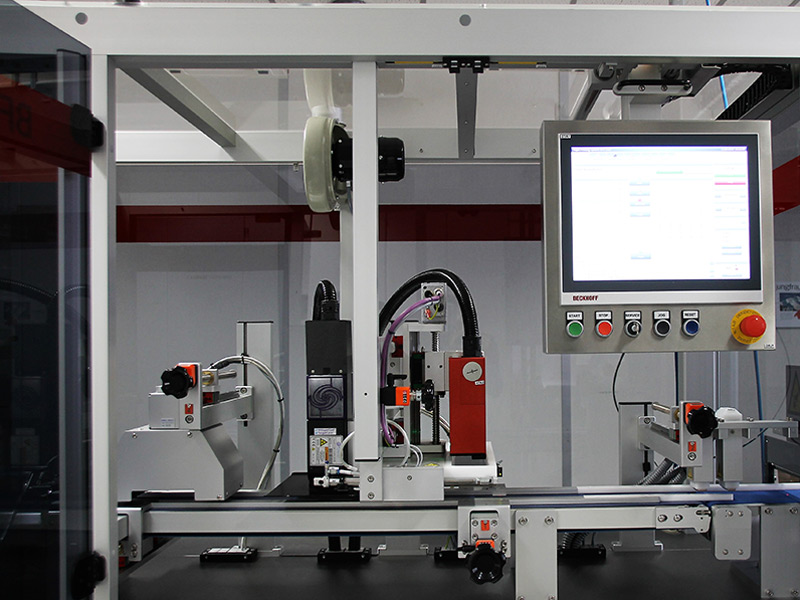

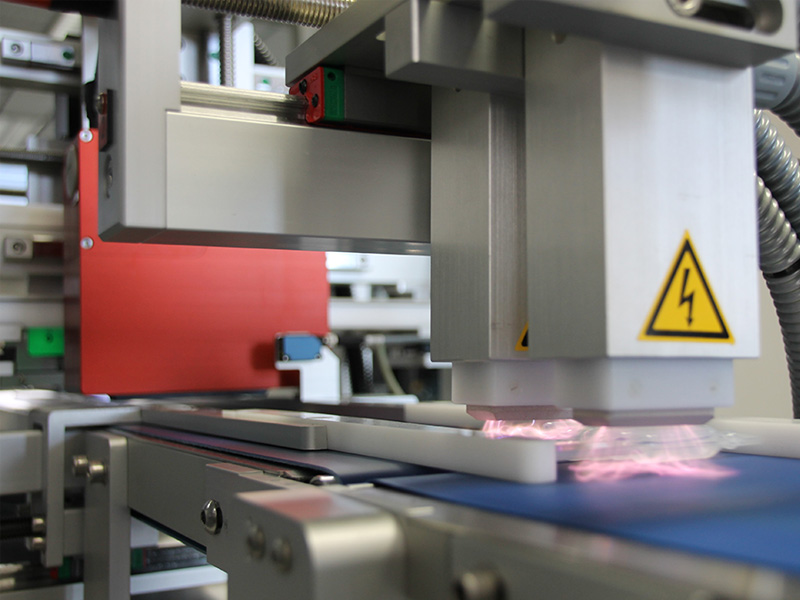

The system incorporates up and downstream connection conveyor. Redcube UV piezo Drop on Demand inkjet technology is employed and where required, pre-treatment technology can be added. The UV ink applied is cured instantly. An optional vision system can check the print for quality and completeness. Faulty products are rejected by the inbuilt reject mechanism.​The Hapa BFS-JET DOD piezo inkjet printing system uses redcube Drop on Demand printing technology and is designed to print products produced on a blow fill seal machine. The system can be equipped with up to 2 spot color printing units.​The system is an optimal, cost-saving solution for today's Late Stage Customization requirements in the Pharma and Healthcare industries. Solvent-free UV inks offering perfectly sharp print quality and immediate curing thus make this application an easy to use GMP compliant in-house printer.

KEY ADVANTAGES

  • Scuff-resistant print
  • Fast & simple change of artworks
  • No labeling application necessary
  • Waste reduction
  • Line clearance efficiency
  • Improved product security


Detailed Info

Footprint
Machine depth (mm)1090
Machine height (mm)1903
Machine length (mm)3090
Machine weight (kg)680
Performance
Max speed (m/min)54
Other technical features
Technological applicationDirect DOD printing on objects, variable date, 2D matrix code
SubstratesAll, test for verification recommended.
Technical data
Max printing width (mm)72
Resolution (dpi)360
Attached Files
Brochure_BFS-JET_ENDOWNLOAD
