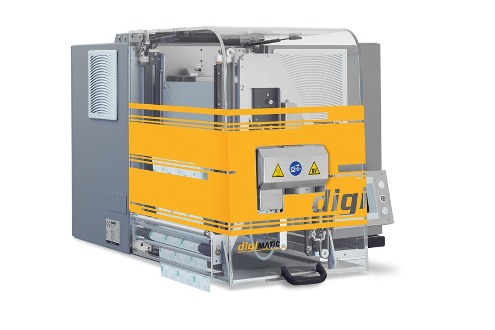

DigiMatic 828

Off-the-shelf digital system for the inline printing of one color on blister-lidding foils

Basic Info

  • TECHNOLOGY: Digital Printing
  • INDUSTRY: Pharma & Healthcare
  • SEGMENT: OTC, Other Pharma & Healthcare

Description

The off-the-shelf DigiMatic 828 is a fully digital and format-free UV DOD Piezo inkjet printing system. Using solvent-free UV inks, it prints one color on roll-fed materials, including aluminum foil, paper, PVC and Tyvek. Artwork changeovers are made without tools or cleandown. Designed for packaging lines in a pharmaceutical environment, the system integrates easily with continuous and intermittent-motion blister machines.

Detailed Info

Footprint
Machine depth (mm)1069
Machine height (mm)852
Machine length (mm)1126
Machine weight (kg)300
Performance
Max speed (m/min)25
Other technical features
Technological applicationBlisters, Deep draw blisters, Trays, Pouches
SubstratesAluminum foil, Paper-backed foil, Paper, PVC, Tyvek
Technical Data
Max advance length (mm)250
Technical data
Max printing width (mm)216
Max printing length (mm)250
Max web width (mm)220
Min advance length (mm)50
Min web width (mm)65
Resolution (dpi)360
Value proposition
Value propositionFlexibility
Attached Files
Brochure_DIGIMATIC_ENDOWNLOAD
Technical_Datasheet_DIGIMATIC_T-1C-LR-RL_EN/DEDOWNLOAD
