Compact single-color digital printing module

Basic Info

  • TECHNOLOGY: Digital Printing
  • INDUSTRY: Pharma & Healthcare
  • SEGMENT: Optical, Laboratories, Medical Devices, OTC, Other Pharma & Healthcare, Other Prescription Applications, Injectables, Ophthalmic

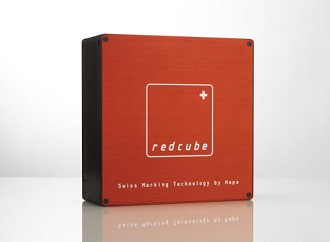

​The redcube from Hapa is a compact DOD Piezo inkjet printing module, using solvent-free UV cured inks, for integration into any production process. It prints graphics, text, variable data, data matrix symbols and barcodes on substrates as they are led past the print head on a conveyor or material handling system.


  • Exceptional print quality at high printing speed with sharp contrast
  • Extremely durable print – long lasting, abrasion resistant and resilient to temperature, moisture and solvents
  • Wide range of substrates – lacquered and unlacquered, rough, smooth, porous or non-porous
  • Non contact printing – no deformation of the substrate
  • Instant curing – highly accurate print control, material immediately available for further inline processing

Detailed Info

Machine depth (mm)190
Machine height (mm)195
Machine length (mm)70
Machine weight (kg)50
Max speed (m/min)27
Other technical features
Technological applicationBlisters, Components, Folded & Glued cartons, Erected cartons, Pouches, Bottles, Ampoules
SubstratesAluminum foil, Paper-backed foil, Paper, Glass, Labels, PVC, Tyvek, Polypropylene (PP), Polycarbonate, ABS, PET, LD/HDPE
Technical data
Max printing width (mm)216
Max printing length (mm)400
Resolution (dpi)360
Value proposition
Value propositionFlexibility
