Digital, single-color packaging-printing system for blister-lidding foils

Basic Info

  • TECHNOLOGY: Digital Printing
  • INDUSTRY: Pharma & Healthcare
  • SEGMENT: OTC, Other Pharma & Healthcare

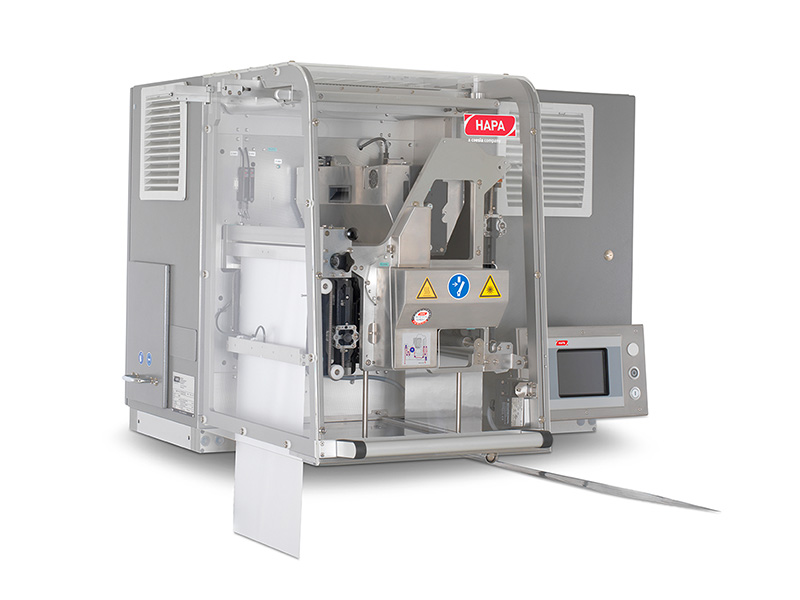

‚ÄčThe WebJet is a fully digital piezo inkjet printing system. Using modern, solvent-free UV-curing inks, it prints one color on web materials including aluminum foil, paper, PVC and Tyvek. The system is easily integrated onto any continuous or intermittent motion packaging machine, making it ideally suited for use within a pharmaceutical environment. Top-mounted, the WebJet can be installed on top of any packaging machine.

Detailed Info

Machine depth (mm)1069
Machine height (mm)852
Machine length (mm)1126
Machine weight (kg)300
Max speed (m/min)27
Other technical features
Technological applicationBlisters, Deep draw blisters, Trays, Pouches
SubstratesAluminum foil, Paper-backed foil, PVC, Tyvek
Technical Data
Max advance length (mm)400
Technical data
Max printing width (mm)348
Max printing length (mm)400
Max web width (mm)370
Min advance length (mm)50
Min web width (mm)64
Resolution (dpi)360
Value proposition
Value propositionFlexibility
Attached Files
Technical Datasheet, WebJet M, 1 color roll-to-roll, H-829-R-1C-LR_V1.0.pdfDOWNLOAD
Technical Datasheet, WebJet M, 1 color stand-mounted, H-829-S-1C-LR_RL_V1.0.pdfDOWNLOAD
Technical Datasheet, WebJet_M, 1 color top-mounted_H-829-T-1C-LR_RL_V1.0.pdfDOWNLOAD
Technical Datasheet, WebJet L, 1 color roll-to-roll, H-837-R-1C-LR_V1.0.pdfDOWNLOAD
Technical Datasheet, WebJet L, 1 color stand-mounted, H-837-S-1C-LR_RL_V1.0.pdf.pdfDOWNLOAD
Technical Datasheet, WebJet_L, 1 color top-mounted_H-837-T-1C-LR_RL_V1.0.pdfDOWNLOAD
